Instruction

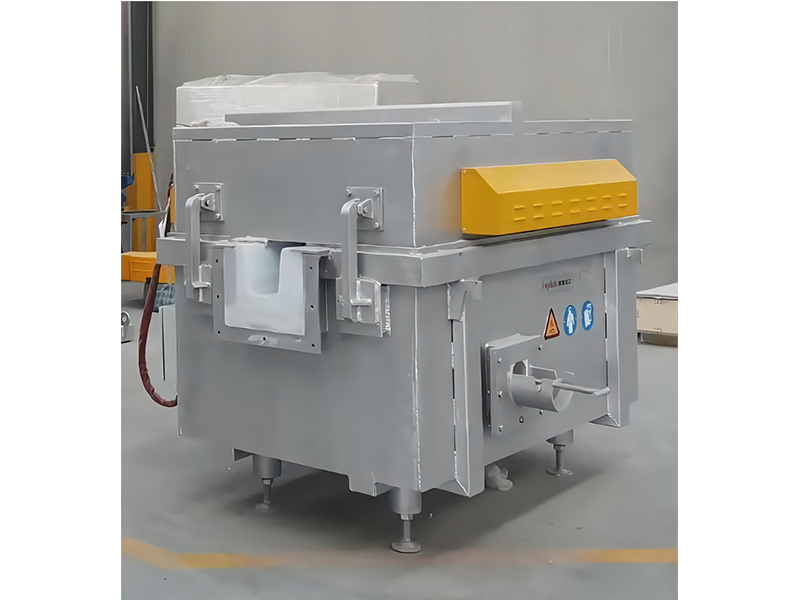

◆ TFB Tubular Filtration Box technology has been verified by practice for more than 30 years, and is widely used in the production of high-end products, especially in high value-added occasions such as can materials, foil materials, printing plate bases, and photosensitive drum thin-walled pipes;

◆ Use for producing the high-purity aluminium capacitor foil, light gauge foil, aluminium casing of 3C products, computer disks, traffic profiles, aviation components and other high-end aluminium products.

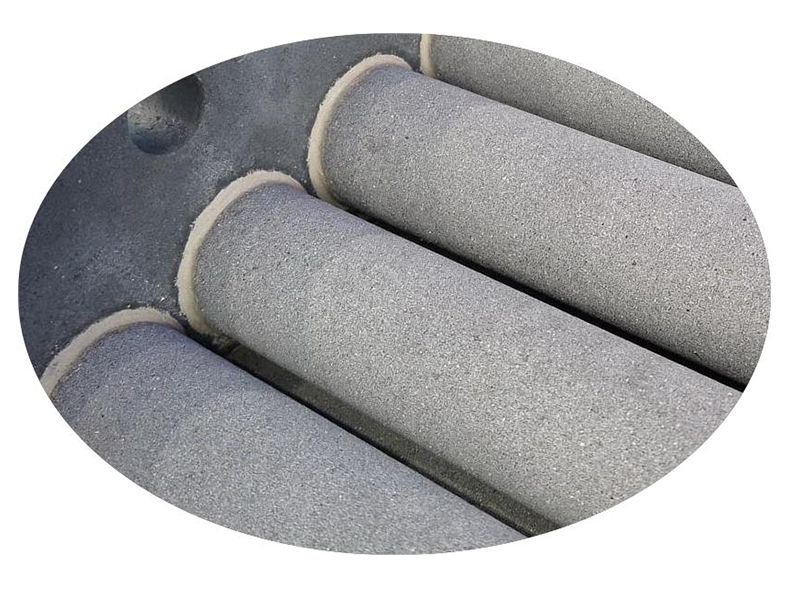

◆ The tube group with the highest filtration grade can theoretically remove all impurity particles larger than 5μm.

◆ The processing capacity of the TFB Tubular Filtration Box is 5 (0701 type)-80 (2803 type) tons per hour.

Equipment Features

◆ A variety of design configurations to meet the process requirements of different customers

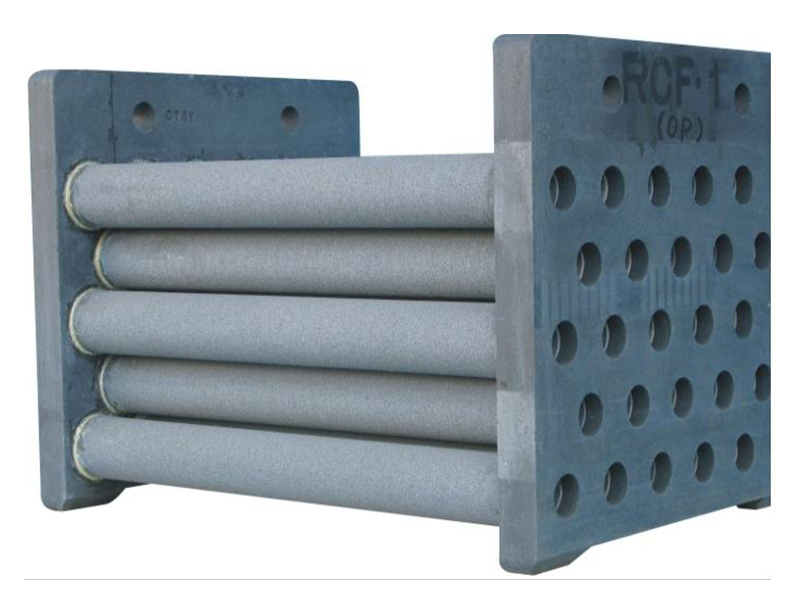

◆ Can provide extremely fine-grained tube groups, with excellent filtration efficiency for high value-added products

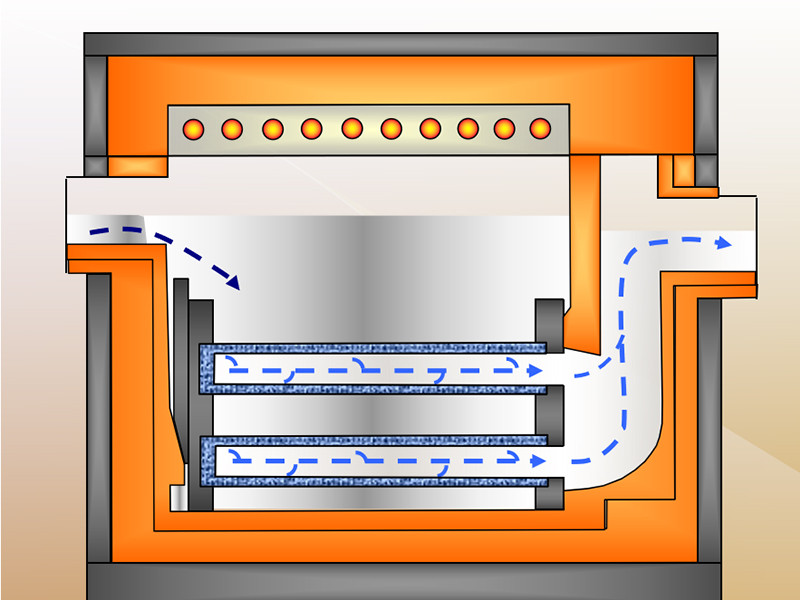

◆ Compared with other filtration processes, tubular filtration box has extremely high filtration area and finer filtration precision

◆ The technology is stable and reliable after more than 30 years of use and verification.

TFB Types
